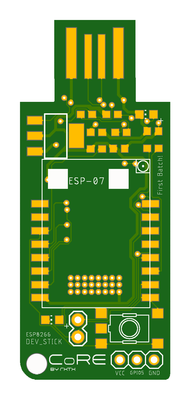

PCB preview top

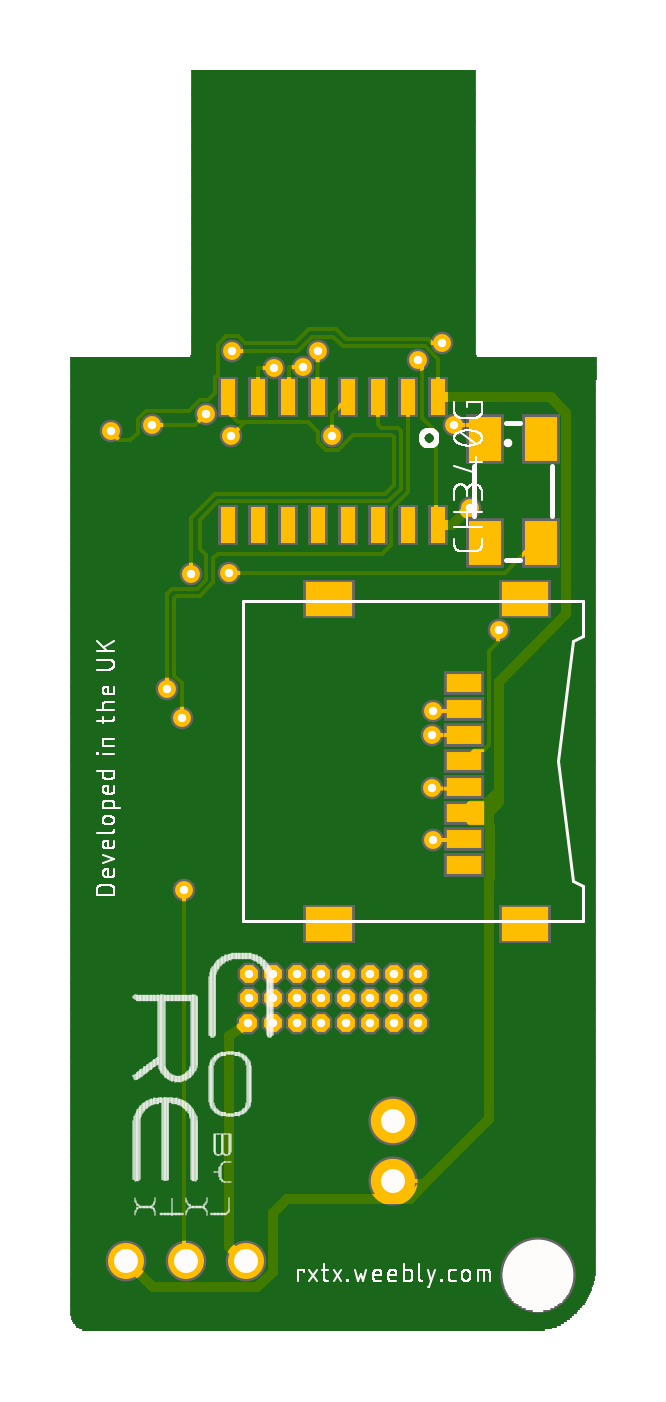

PCB preview bottom
Stencil preview top
Stencil preview bottom

Readme

The CoRE is a hackable, easy to use Espressif ESP8266 development kit. Designed with size in mind, the CoRE is one of the smallest ESP8266 development boards in the world, and fits into a USB-A port like a memory stick. It has 8Mb of flash ready with AI-Thinker's AT firmware, but can be flashed with any compatible firmware (NodeMCU, Micropython, Arduino Core etc.)

A useful feature of the CoRE is its MicroSD card support, making it a very capable IoT data-logger; it can continue working without any internet connectivity (documentation under development - will include sample sketches for a simple data-logger). Alternatively, it can be used to store your larger projects - its your choice.

The CoRE has on-board power regulation, so you don't have to worry about your SD card being damaged.

Available from April 2018. Reserve your CoRE now and get ready to start hacking!

Parts

Name Description
1x RESET SWITCH TACTILE SPST-NO 0.02A 15V
1x U1 IC REG LIN POS ADJ 1A SOT223-4
1x R5 RES SMD 2.2K OHM 5% 1/10W 0603
1x R2 RES SMD 390 OHM 0.1% 1/16W 0603
1x R1 RES SMD 220 OHM 5% 1/10W 0603
2x R4 / R3 RES SMD 330 OHM 1% 1/10W 0603
1x Q2 CRYSTAL 16.00 MHZ 9PF SMD
2x LED2 / LED1 LED GREEN CLEAR 0805 SMD
2x C2 / C1 CAP CER 22PF 50V C0G 0603
1x C4 CAP CER 0.1UF 10V X7S 0201
1x J2 CONN MICRO SD CARD HINGED TYPE
