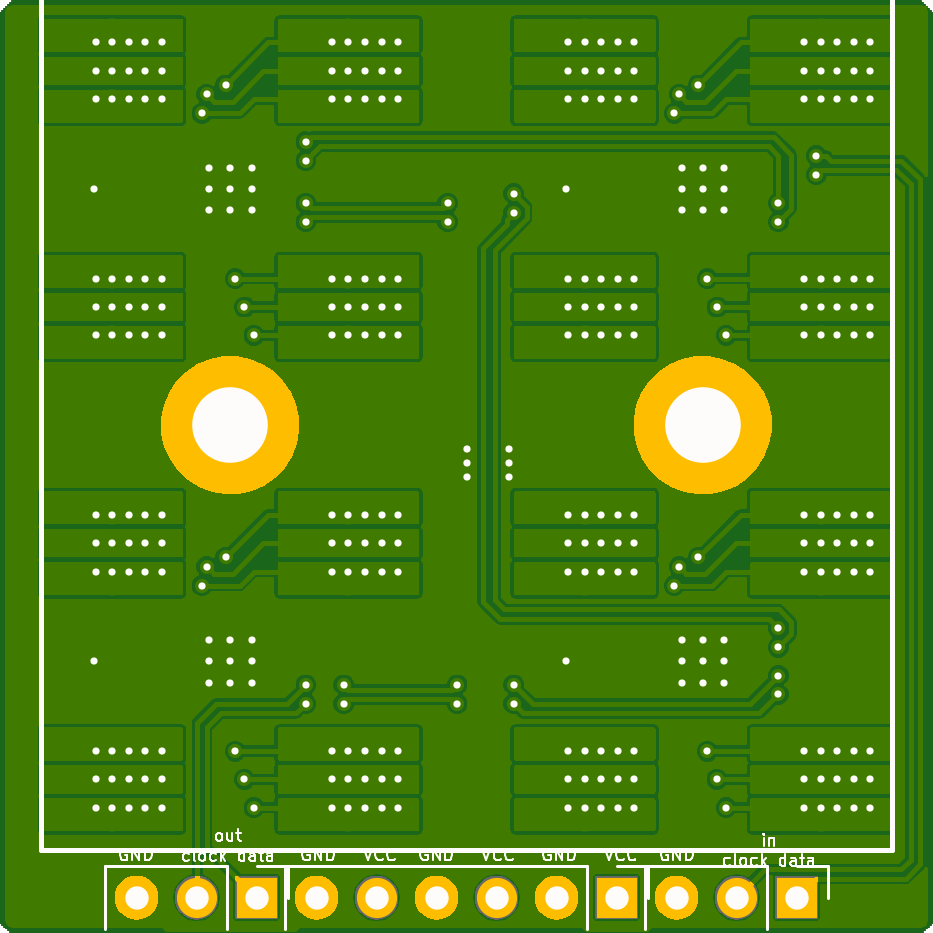

board preview bottom

Readme

for more details have a look at

https://github.com/s-light/LEDBoard4x416bit

Updated to v2.0.3

reflow oven needed

right top image shows v2.0.3

Attention: BOM does not Include LEDs. request them at your favorite Nichia Distributor (for example Lumitronix - they are only available at request as full roll - 3000 peaces )

Parts

Name Description
4x C1 / C2 / C3 / C4 0603 0.1 uF 16 V ±10 % Tolerance X7R SMT Multilayer Ceramic Capacitor
1x C5 CAP CER 47UF 6.3V X5R 0603
4x R1 / R2 / R3 / R4 RES SMD 2.7K OHM 1% 1/10W 0603
4x U4 / U3 / U2 / U1 IC LED DRIVER LINEAR 60MA 24VQFN
